Folding electric bikes are an integral part of our offer. Meet Ecobike Rhino!

Folding electric bikes are an integral part of our offer. Meet Ecobike Rhino!

Ecobike

EcoBike Rhino Folding E bike 2023

€2,141.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we can’t offer you a refund or exchange.
To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.


Several types of goods are exempt from being returned. Perishable goods such as nutrition cannot be returned. We also do not accept products that are intimate or sanitary goods, hazardous materials, or flammable liquids or gases.

Additional non-returnable items:
Gift cards
Downloadable software products
Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)

Book with obvious signs of use
CD, DVD, VHS tape, software, video game, cassette tape, or vinyl record that has been opened.
Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery
Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at info@mccarthycycles.com.

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at info@mccarthycycles.com and send your item to: Unit 9, Blackpool, T23 WY83, Ireland.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: Unit 9, Blackpool, T23 WY83, Ireland.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

EcoBike Rhino Folding E bike 2023

Season:2023

Brand:Ecobike

Code:SO22YP17639

Technical specification

Frame 15.5" hydroformed aluminum

Fork RST CARVE-D-20 travel 50 mm

Wheel 20" reinforced three-chambered rims / Sapim spokes

Tires 20" x 2.0 Schwalbe Big Apple

Front hub KT-SN6F

Rear Hub not applicable

Handlebar Promax 640 mm 25.4

Handlebar stem Zoom 9° / 70 mm

Grip Velo VLG 709-2AD3

Brakes Tektro MD M300 mechanical

Front derailleur not applicable

Rear derailleur Shimano Tourney 6 speed

Grip Shimano Tourney Revo 6 speed

Freewheel Shimano MF-TZ500 14-28T 6 speed

Bottom bracket Feimin FP-B902W

Chain KMC

Crank Prowheel 46T

Pedals VP

Saddle Selle Royal Freeway

Seat post Promax 30.4 / 350 mm

Front lights Spaninga Kendo XE

Rear light Spaninga RL1900XE DC36V E-BIKE

Maximum load 125 kg

Weight 23.3 kg

Battery

Cells brand LG / Greenway

Capacity Wh 522 - 576 Wh

Type Li-ion

Voltage 36 V

Range 120 - 140 km

E-bike system

Motor Bafang

Model SWXH2

Type Rear hub motor

Voltage 36 V

Torque 32 N.m

Maximum power 320 W

Power 250 W

Speed 25 km/h in accordance with EU standard EN 15194

Display

Display model C300U

Display brand Ecobike

Display type LCD monochromatic

Technical Information

Thoughtful design, reliable technology and functionality are the main elements from which Rhino was created.
The innovation compared to other electric folding bikes is primarily the frame. Thanks to the fully integrated battery, all housed in a new, robust design, we have achieved excellent ergonomics, the bike looks great and rides even better.
It has become more convenient to insert and remove the battery. There are two configurations to choose from: 14.5 and 16 Ah.

Rhino's electric assistance is based on technology appreciated by users. The proven Bafang motor works in the rear wheel hub, supported by a modern controller.

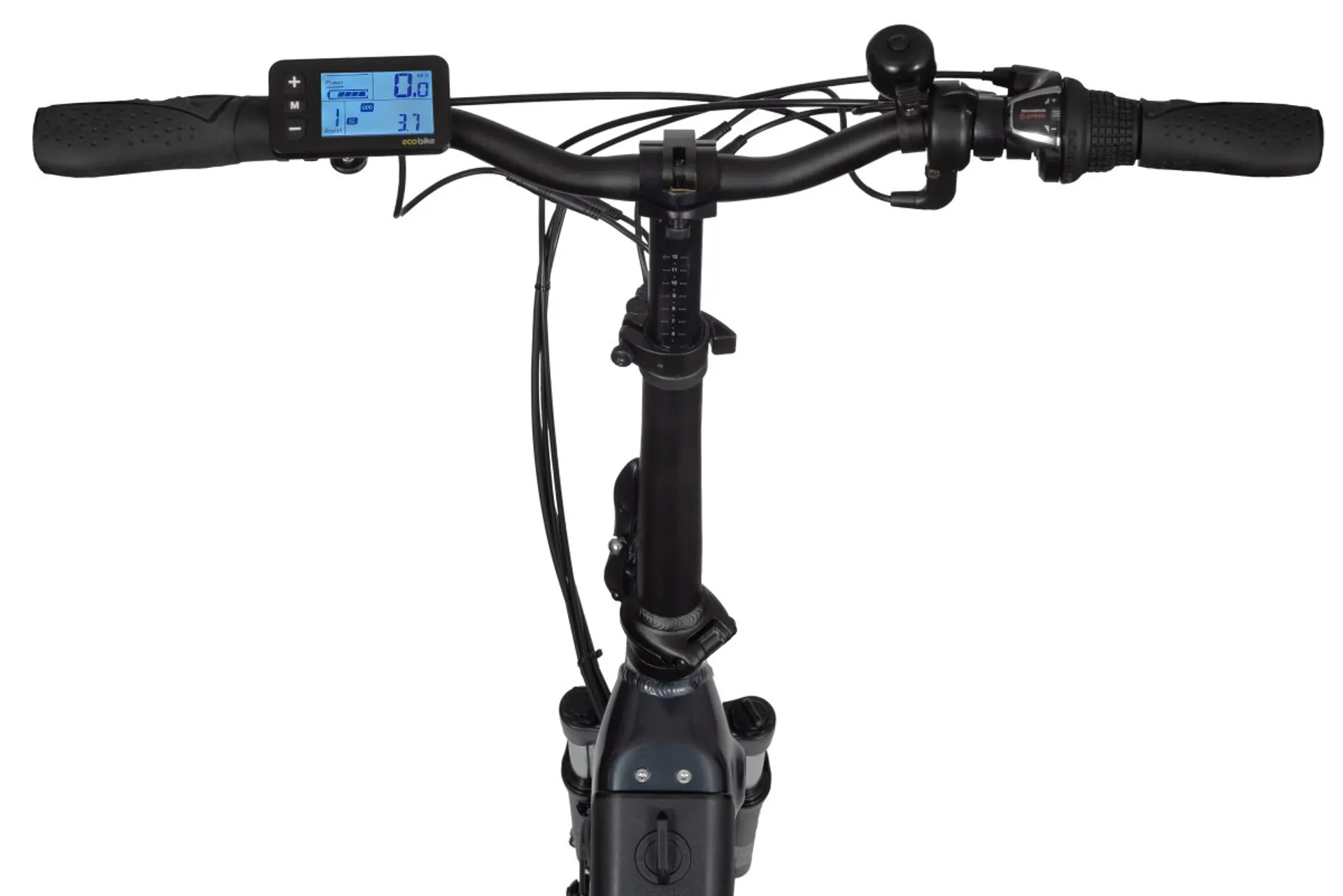

Assistance is managed via an easy-to-use LCD display. In addition to many engine settings, it also shows a lot of necessary information about the entire system and user activity.
There was also a gas lever, which you can also set according to your needs - it allows you to start the support of driving the bike by default.

The whole is complemented by, among others, durable Shimano accessories, RST Carve shock absorber and durable and comfortable Schwalbe Big Apple tires, and as a novelty in this model we used disc brakes!

Rhino in a few seconds from an easy to transport and store "cube" becomes a convenient means of transport!

Sizing Information

Geometry

A Effective top tube length (mm) 619.90

B Head tube (mm) 135

C Seat tube length (mm) 365

D Wheel base (mm) 1 093.60

E Seat tube angle (degrees) 73

F Headset angle (degrees) 72.50
