When the road becomes unpredictable trail, there is no room for unproven solutions.
You need a bike you can rely on.
Meet the SX. An e-bike MTB that you won't hesitate to go further than the others.
When the road becomes unpredictable trail, there is no room for unproven solutions.
You need a bike you can rely on.
Meet the SX. An e-bike MTB that you won't hesitate to go further than the others.
Ecobike

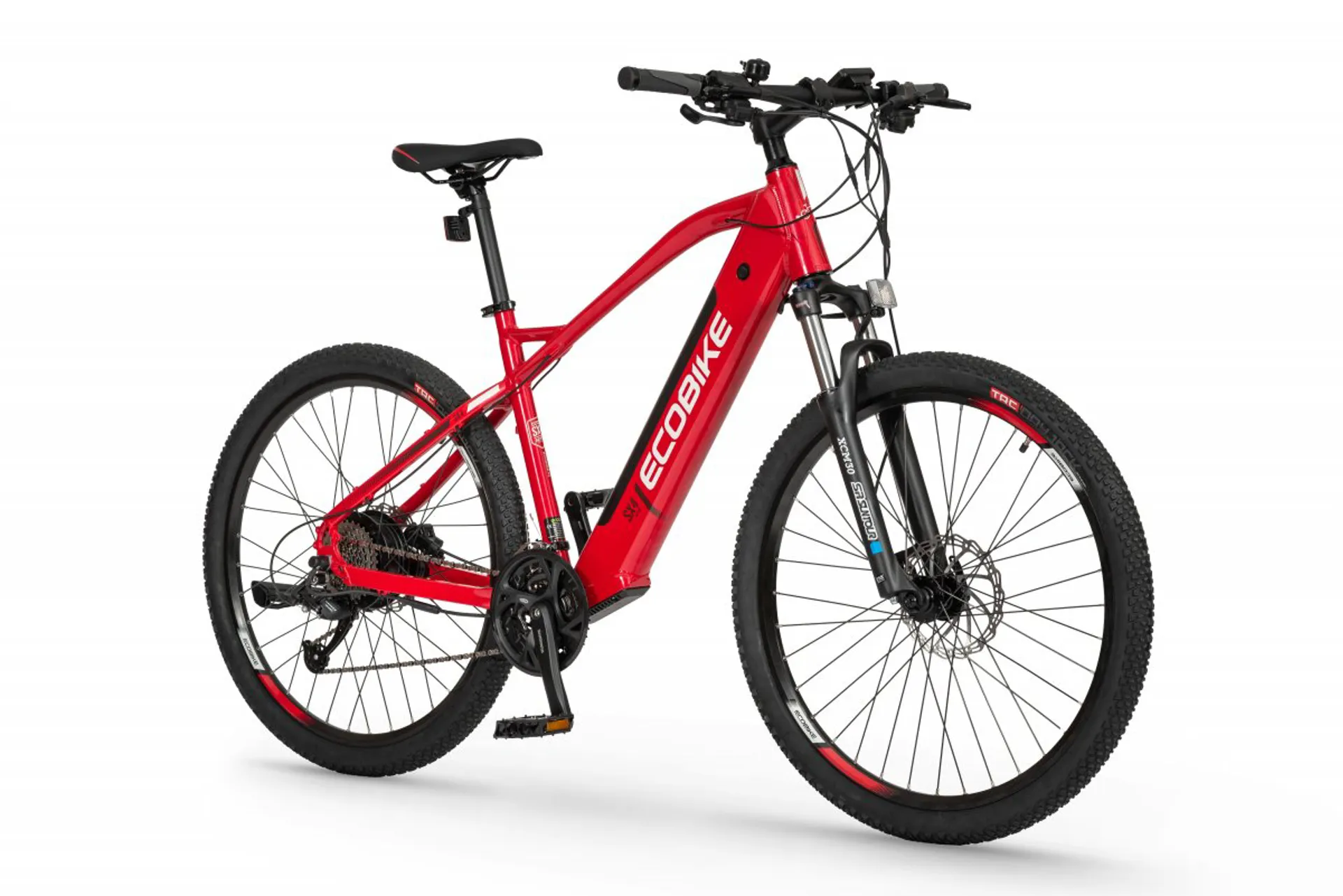

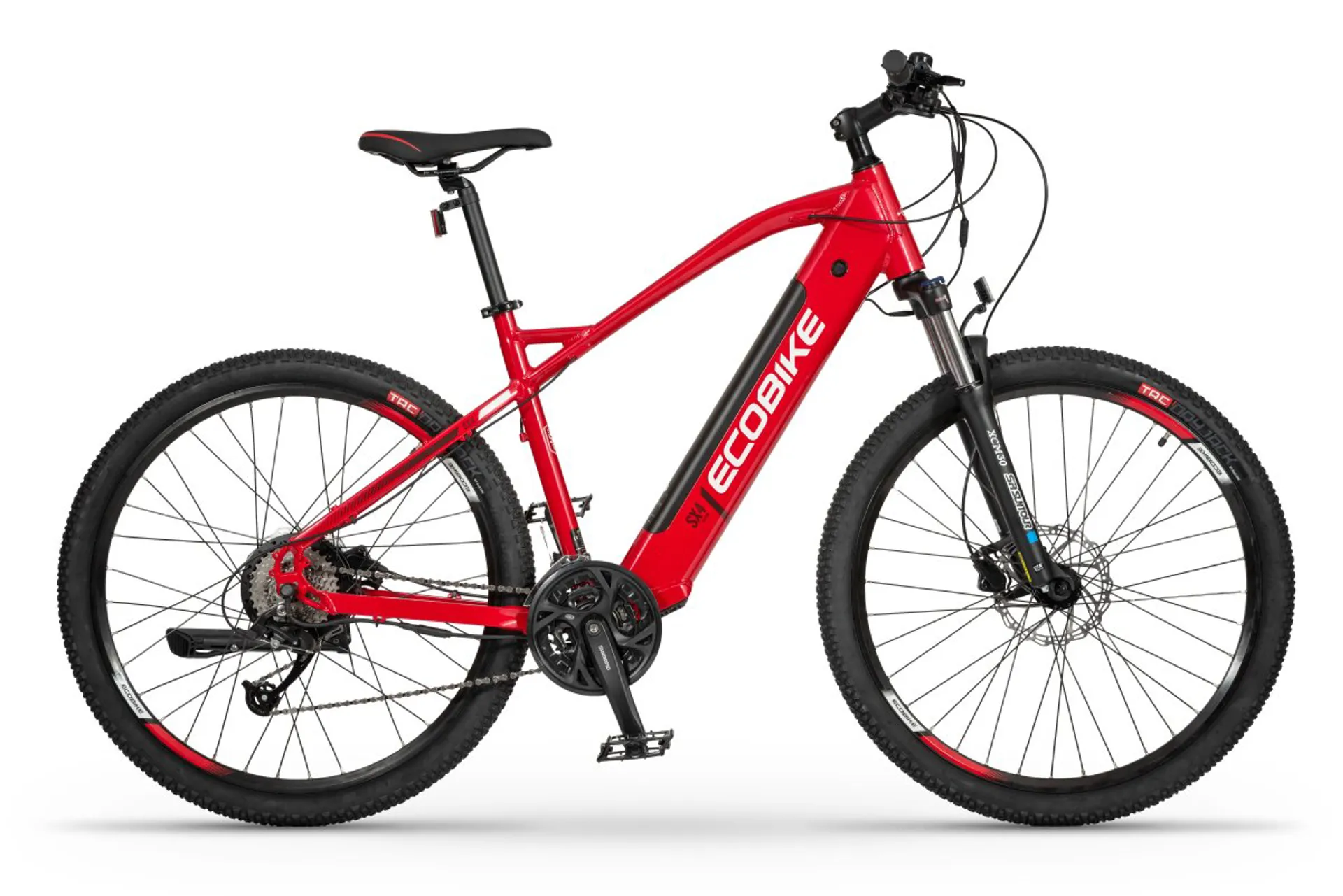

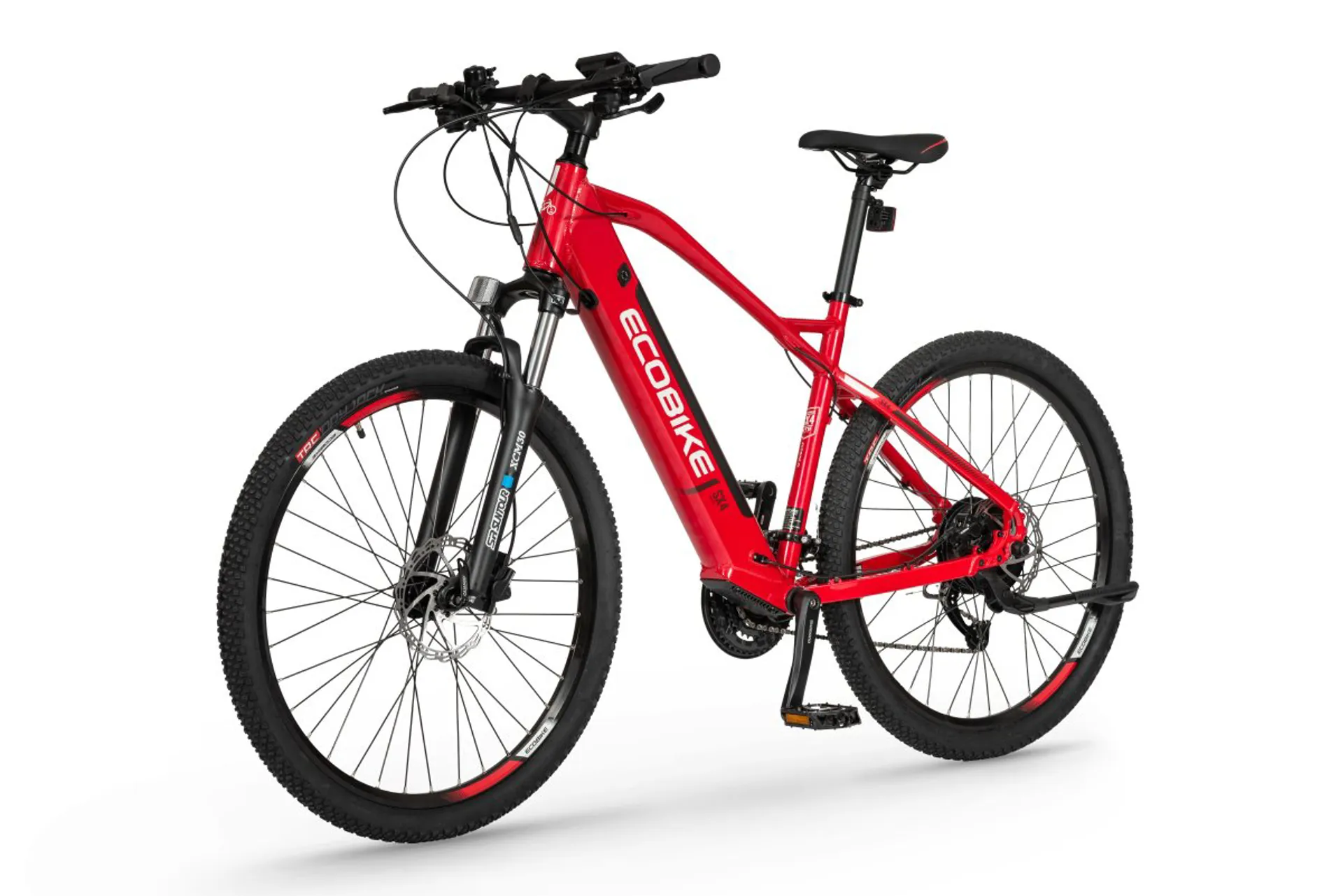

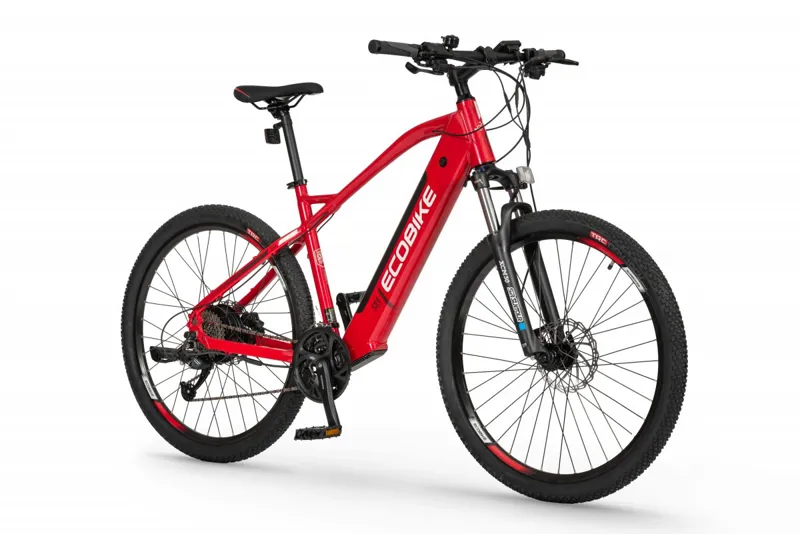

EcoBike SX4 MTB

€1,999.00 €2,092.00 4% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we can’t offer you a refund or exchange.
To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.


Several types of goods are exempt from being returned. Perishable goods such as food, flowers, newspapers or magazines cannot be returned. We also do not accept products that are intimate or sanitary goods, hazardous materials, or flammable liquids or gases.

Additional non-returnable items:
Gift cards
Downloadable software products
Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)

Book with obvious signs of use
CD, DVD, VHS tape, software, video game, cassette tape, or vinyl record that has been opened.
Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery
Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at info@mccarthycycles.com.

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at info@mccarthycycles.com and send your item to: Unit 9, Blackpool, T23 WY83, Ireland.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: Unit 9, Blackpool, T23 WY83, Ireland.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

EcoBike SX4 MTB

Season:2023

Brand:Ecobike

Code:SO21YP32406

Technical specification

Frame 19" hydroformowane aluminium

Fork SunTour XCM

Wheel 27,5 inches, reinforced rims and stainless spokes

Tires TRC Dryjack 27,5"x2,1

Spoke SAPIM 13G / Front wheel: 268 mm / Rear wheel: 230 mm

Front hub KT KT-K68F

Handlebar Zoom MTB-AL-312BT

Handlebar stem Promax MA-47

Grip VELO VLG-776-12D3+VLP-171

Brakes ALHONGA hydraulic HJ-HT472

Shifters Shimano Altus / Alivio - 9 speed

Grip Shimano SL-M2000 Altus 3x9

Freewheel Skilful / 13-32T / 9 SPEED

Bottom bracket Feimin FP-B902W

Chain KMC X9 / 11x128 / 112 mm

Crank Shimano AFCM371C422CL

Pedals WELLGO

Saddle VELO VL-3363

Seat post PROMAX SP-252 (27,2 mm x 350 mm)

Maximum load 125 kg

Weight 25,3 kg

Steerer parameters zew. 28.6 mm / wew. 25.4 mm / dł. 247 mm

Battery

Charger 220-240V/42V / 2A / D type

Smart BMS Yes

Cells brand LG

Capacity Wh 468 - 630 Wh

Type Li-ion

Voltage 36 V

Range 60 - 140 km

Fuses 30 A

Lifespan 700 charges

Charging time 4 - 8 hours

Capacity ah 13 Ah - 17,5 Ah

E-bike system

Motor BAFANG

Type rear wheel

Voltage 36 V

Torque 45 N.m

Maximum power 560 W

Power 250 W

Computer LISHUI SO-WZK0251

Speed 35 km / h limited to 25 km / h in accordance with EU standard EN 15194

Technical Information

The Ecobike SX looks like it has been drawn by a simple movement, but its design is the result of complex work.

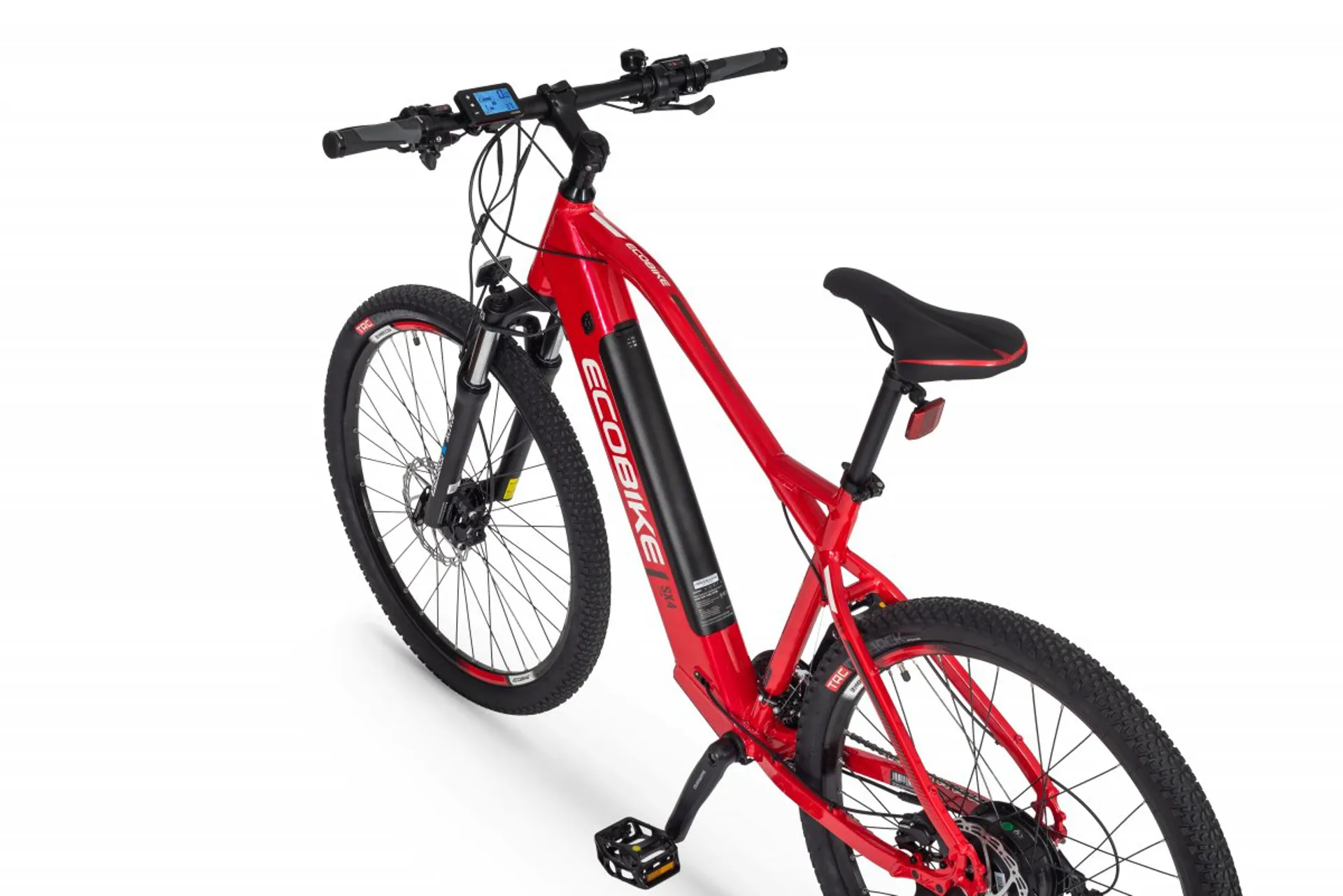

The frame has been designed in such a way that, while maintaining good ergonomics, it can accommodate the entire battery.
We have obtained a durable construction that holds the battery well, and inserting and removing it has become more convenient.
As always with Ecobike, you can configure your e-bike with batteries of different capacities: 13 Ah, 14.5 Ah, 17.5 Ah.

Our proven electric system, which we have used on our bikes since years and we constantly improve, is responsible for a unique riding experience and reliable assistance.

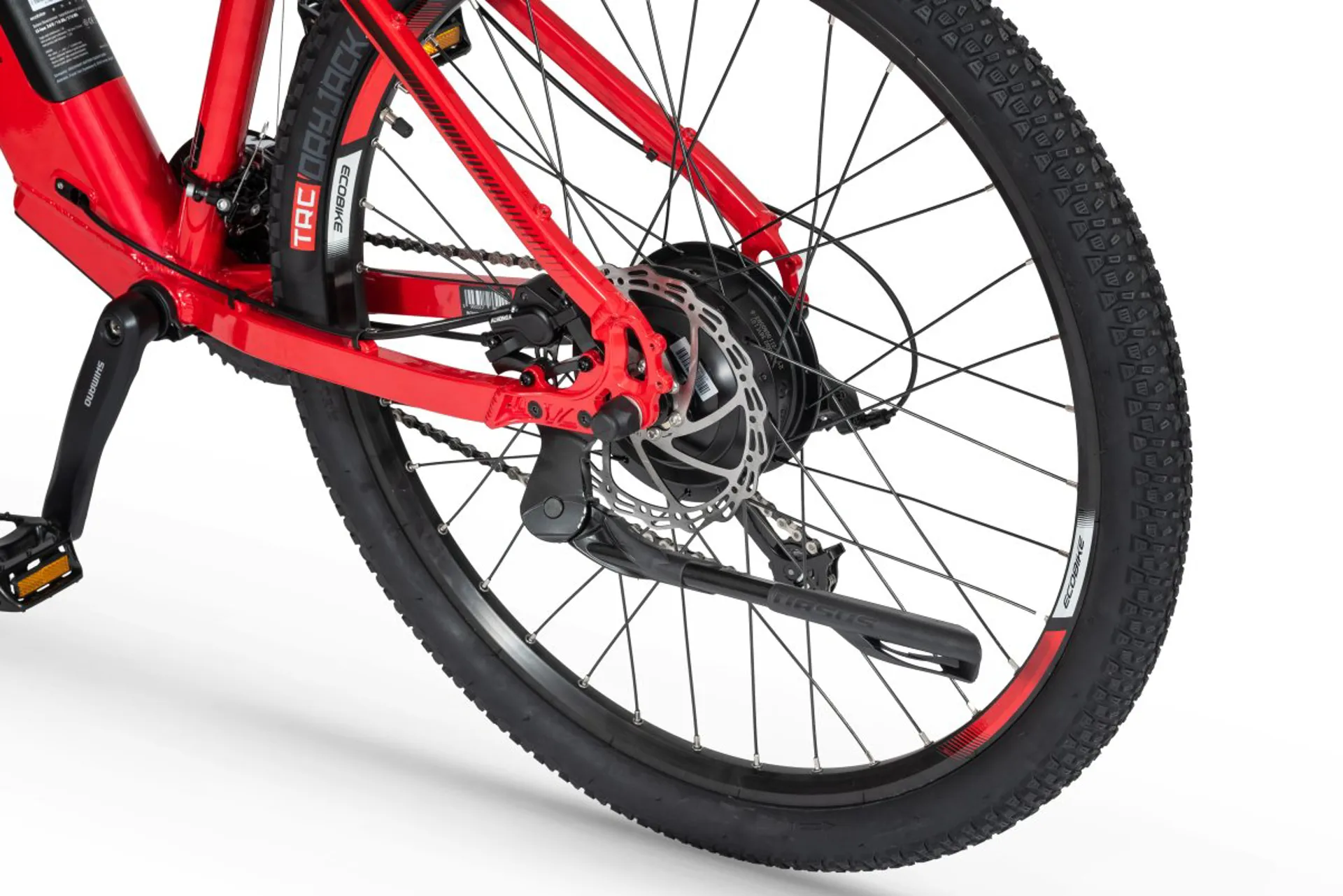

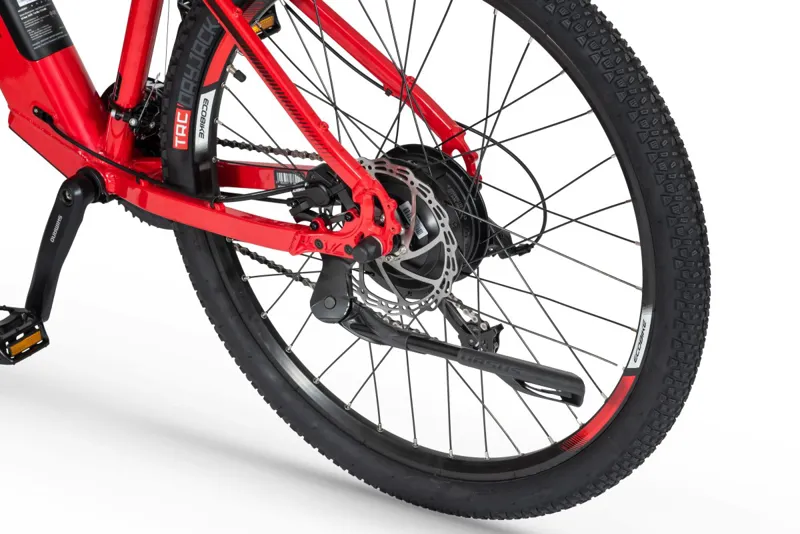

A powerful and maintenance-free Bafang motor that transfers power through the rear wheel will allow you to climb hills and will not give up even in difficult conditions.
With the modern controller, you will not have to worry about the drive system - it will take care of itself while you are enjoying the ride.

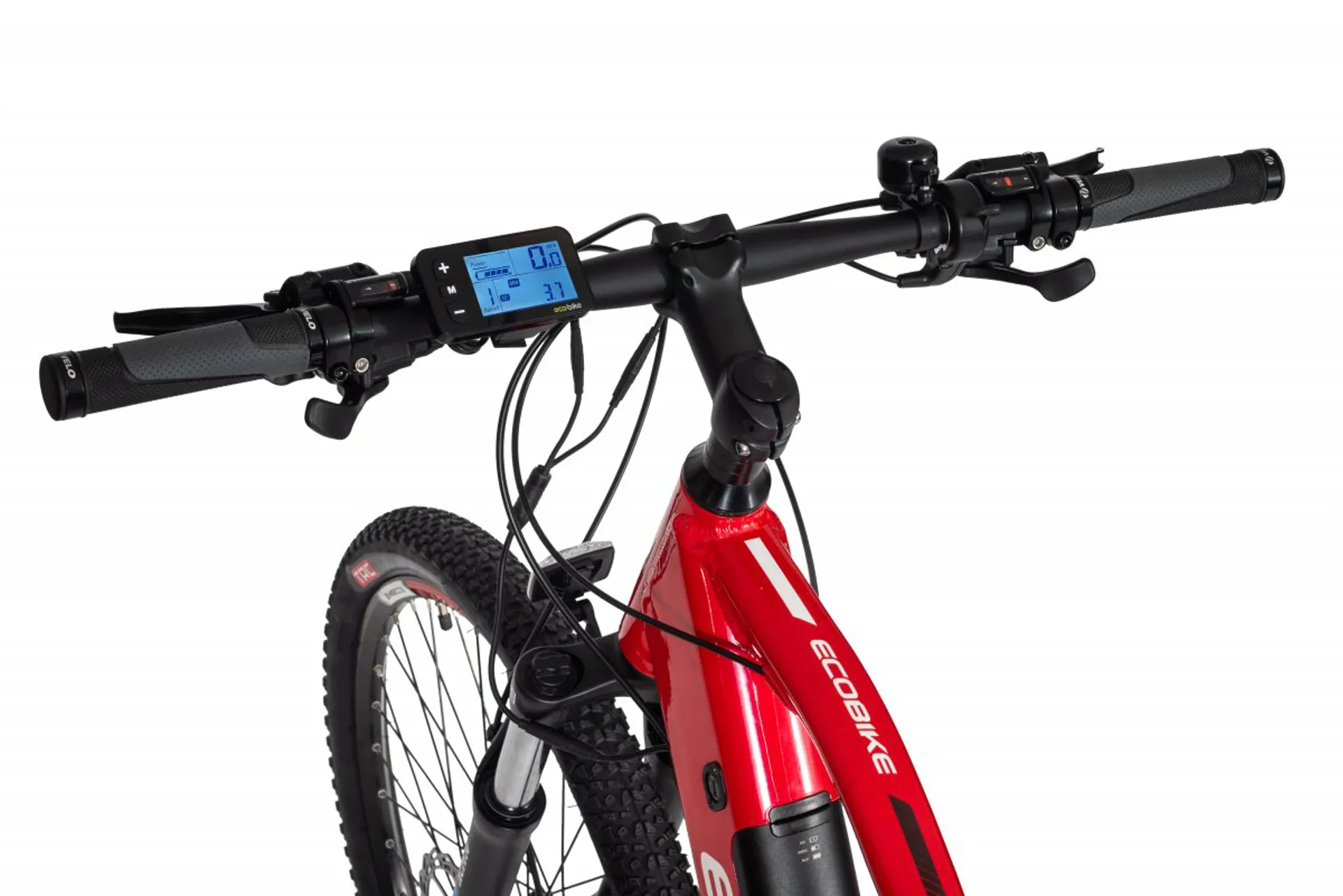

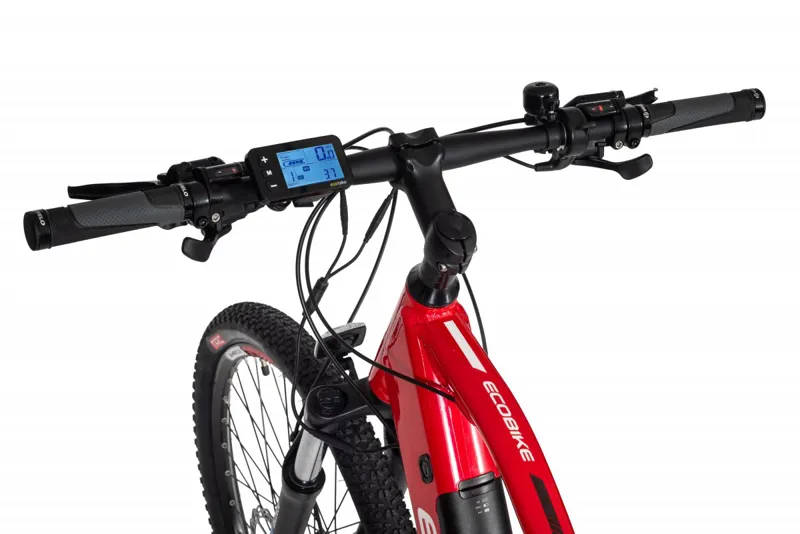

On the easy-to-use control panel you can read the most important parameters and choose the best settings for you.

We want to be sure that the SX will not let you down, so durable equipment is a must.
We used, among others high-quality Shimano Altus/Alivio derailleurs and hydraulic Alhonga brakes, excellent SunTour XCM fork and very strong tires TRC Dryjack.

We have created a new MTB model. Choose your favorite from among the three variants and go into unknown!

Sizing Information

Geometry

AEffective top tube length (mm) 595

BHead tube (mm) 160

CSeat tube length (mm) 482

DWheel base (mm) 1 095.80

ESeat tube angle (degrees) 73

FHeadset angle (degrees) 70
